#CUT QUALITY ISSUE

Heavy Dross

Excessive molten material adheres to the bottom edge of cuts, creating hard slag deposits that require secondary processing to remove.

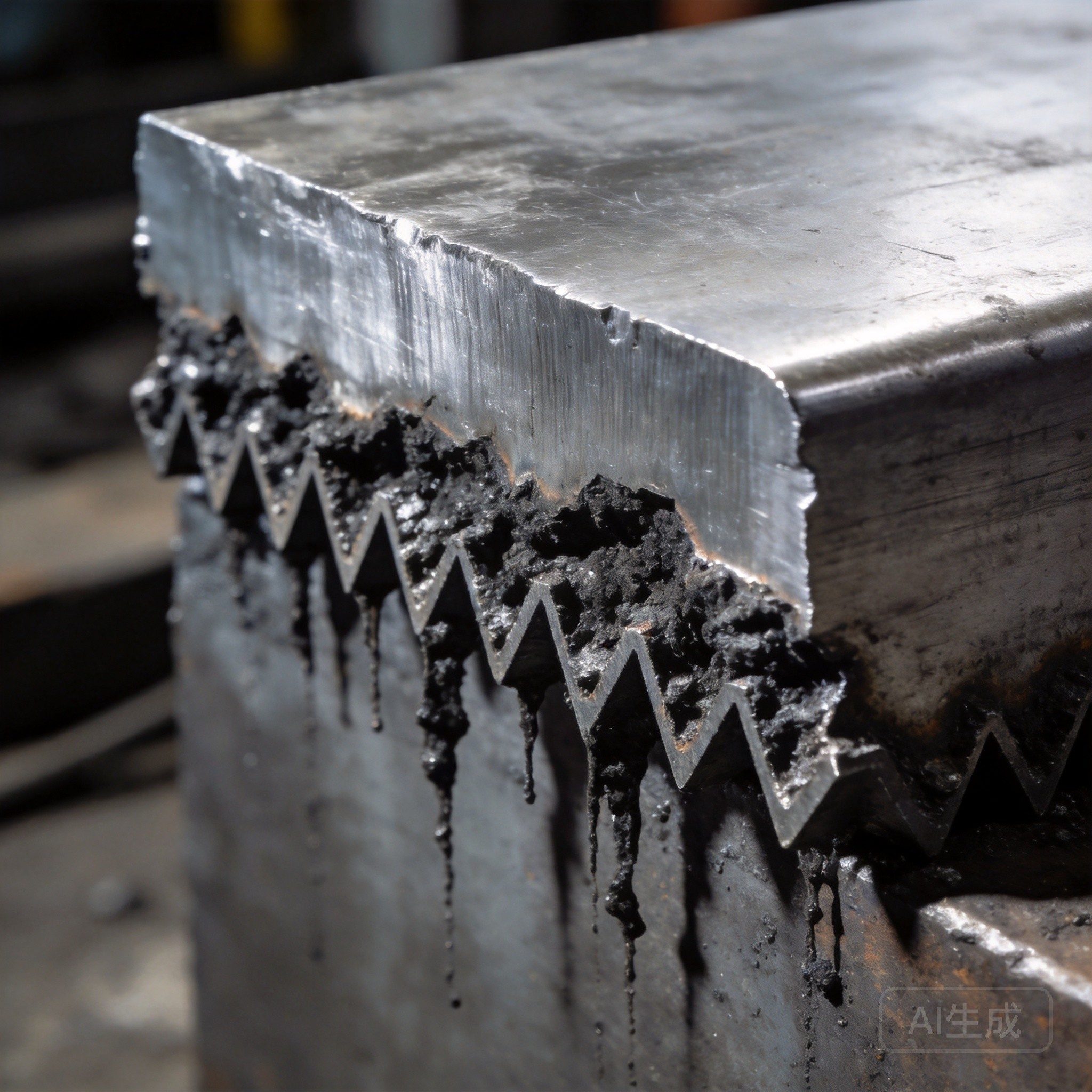

Heavy Dross

Clean Cut

Common Symptoms

• Rough Bottom Edge: Uneven, jagged texture on the underside of the cut edge with visible slag deposits. Affects part quality and requires grinding.
• Slag Adhesion: Hard, firmly attached dross that cannot be easily brushed off. Requires chipping or grinding to remove, increasing per-part cost.
• Inconsistent Pattern: Dross appears intermittently along the cut path, varying in thickness. Straight sections may be clean while corners accumulate slag.
• Partial Dross Only: Dross only on corners or tight radii while straight cuts remain clean. Indicates speed-related rather than parameter-related root cause.

System Layer

This issue involves the following machine subsystems:

Gas System

Gas pressure and nozzle diameter directly determine molten material ejection efficiency from the kerf.

Process Parameters

Focus position and cutting speed settings affect energy distribution at the bottom of the cut.

Root Causes

Nozzle Mismatch

Using a nozzle diameter too small for the material thickness restricts gas flow and fails to eject molten material effectively from the kerf.

Gas Pressure Imbalance

Insufficient gas pressure fails to provide enough kinetic energy to fully expel molten material from the cutting kerf.

Focus Position Error

Focus set too high above the material surface reduces the power density at the bottom of the cut, leaving incomplete penetration.

Excessive Cutting Speed

Feed rate too high for the given material thickness and laser power results in incomplete molten material ejection.

Recommended Solutions

Parameter	Poor Piercing (Typical)	Recommended Range	Improvement
Nozzle Diameter	1.4mm (too small)	2.0mm (matched)	35% less dross
Gas Pressure	0.4 bar	0.8 bar	Clean bottom edge
Focus Position	+2mm (above plate)	-3mm (below surface)	Full penetration
Cutting Speed	1800 mm/min	1500 mm/min	Consistent kerf

💡

Engineering Tip: Replacing consumables on a schedule rather than after failure reduces dross-related downtime by up to 60%. A preventive maintenance log can save 3-5 hours of troubleshooting per week. Check nozzle condition before each shift — worn bores cause 60% of dross issues.

Related MUXI Components

High Precision Nozzle

Multi-size nozzle kit with optimized gas flow channels for reduced dross formation across all power levels.

View Product →

UHDT Protective Lens

Ultra-high damage threshold lens with anti-reflective coating for consistent beam delivery and longer service life.

View Product →

Ceramic Ring Set

High-temperature ceramic rings with wear indicators for timely replacement and consistent cutting quality.

View Product →

Sensor Cable Kit

High-durability sensor cables with reinforced connectors for stable signal transmission in production environments.

View Product →

Applicable Range

Power Range3kW - 20kW+

MaterialsCarbon Steel, Stainless Steel, Aluminum

Thickness1mm - 50mm+

💡Engineering Tip

For thick plate cutting with heavy dross, use a larger nozzle diameter (2.0mm+) with higher gas pressure. Adjust focus to 60-80% of material thickness for optimal bottom edge quality.
